Product Introduction

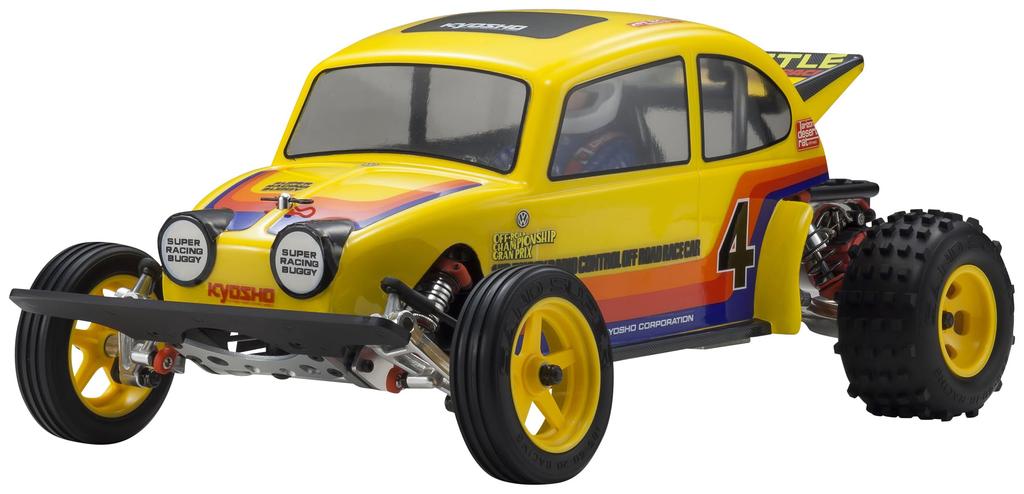

The legend returns! The off-road Beetle is back! With the latest features added to the original, even greater performance awaits!
The Beetle is a legendary off-road machine, rivaling the Scorpion.
As the iconic electric buggy of the 1980s, its name remains world-renowned.
Now, in response to the demands of its enthusiastic fans, its brave form has descended upon the 21st century off-road scene.
Its amusing form, reminiscent of a real Baja racer, features the upgraded ladder-frame 2WD chassis that was so well-received in the 2014 Scorpion.
Based on the original chassis once said to have come from the future, this vehicle is equipped with a host of cutting-edge features.
Whether you're an expert familiar with its past achievements or a modern driver unaware of its existence, enjoy the modern Beetle's driving performance, which further enhances its former glory.
The Beetle off-road machine has been reborn. Every component has been upgraded to 2014 specifications.
The gearbox and oil dampers come pre-assembled. (Oil must be added separately).
6061T6 forged aluminum suspension arms.
Differential gears are housed in a two-piece die-cast aluminum gearbox.
A slipper clutch protects the gears and provides flexible settings.
The aluminum cylinder and stainless steel shaft oil dampers provide smooth operation.
Screws are used to create flat surfaces.
Lightweight design thanks to fewer nuts and tapping screws.
Most screws are hex bolts for a secure assembly.
One-piece rear wheel reduces weight.
Rear tire features an inner sponge.
New tire with a new block pattern made of high-grip material.
Full ball bearings (14 bearings) for high efficiency.
Battery box design accommodates various battery types.
Compatible with an optional Ultima RB ball differential.
[Technical Data]
Length: 398mm.
Width: 236mm.
Total height: 165mm.
Wheelbase: 263mm.
Tread (F/R): 198mm / 195mm.
Tires (F/R): 75x20mm / 85x41mm.
Gear ratio: H-spec 6.9:1, L-spec 8.3:1 (2 combinations included).
Total weight: Approximately 1040g (without R/C mechanism or battery).
Motor: 540 class (sold separately).
Compatible battery size: L 143mm x W 50mm x H 26mm.
*When using a box-type Li-PO with a European connector, the terminal hole in the radio box must be enlarged.
*When using a short-size battery or other small battery, it is necessary to fill the gap with sponge or styrofoam.
[Kit Contents]
Assembly kit (gearbox and oil dampers are pre-assembled).
Pre-cut polycarbonate clear body.
Decals.
L-shaped hex wrench.
Phillips wrench.
Damper wrench.
Items required for driving (not included):
2-channel, 1-servo radio for various car brands.
540-class motor (recommended: 30-27 turns).
Compatible ESC for motor.
Battery pack for driving.
Charger.
Paint for polycarbonate body.
Batteries for transmitter.
Tools (1.5, 2, 2.5mm hex wrench drivers).
Note: This product requires a power source to run, but batteries, charger, etc. are not included.
Transmitter, RC mechanism, motor, paint, tools, etc. are not included. Additional parts, assembly, and painting are required before driving.
Note: This product does not use fuel.
Note: This product does not include fuel.
Note: Paint, adhesives, oil, grease, tools, etc. are not included.
Safety Warning
Drive in a wide, safe area, such as an RC car circuit.
Never drive on roads.
Do not drive in crowded areas, parks, or near small children.
Do not drive in narrow spaces or indoors.
Do not drive near schools, hospitals, residential areas, or other areas where it may disturb others.
Do not drive at night or early in the morning.
A reproduction of the off-road Beetle. Every component has been upgraded to 2014 specifications.
The gearbox and oil dampers are pre-assembled. (Oil must be added separately). 6061T6 forged aluminum suspension arms. A differential gear is housed in a two-piece aluminum die-cast gearbox.
A slipper clutch provides gear protection and flexible settings. Aluminum cylinders and stainless steel shaft oil dampers provide smooth operation. Screw fastening parts are countersunk for a flat surface.
Reduced weight by reducing the use of nuts and tapping screws. Most screws are hex screws for a firm, secure assembly. The rear wheel is one-piece for lighter weight. The rear tire is fitted with an inner sponge.
New high-grip block pattern tires are used. Full ball bearings (14 pieces) for high efficiency. The battery box is designed to accommodate a variety of battery types and shapes. Compatible with the optional Ultima RB series ball differential.
